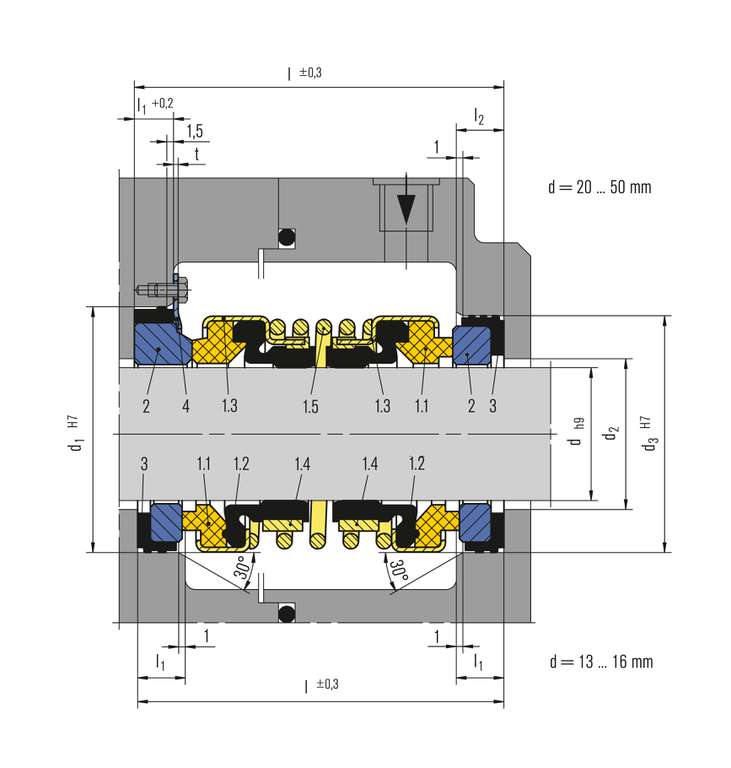

| Item | Description |
| 1.1 | Seal face |
| 1.2 | Bellows |
| 1.3 | Spring collar |
| 1.4 | Drive collar |
| 1.5 | Spring |
| 2 | Seat |
| 3 | Corner sleeve |
| 4 | Washer |

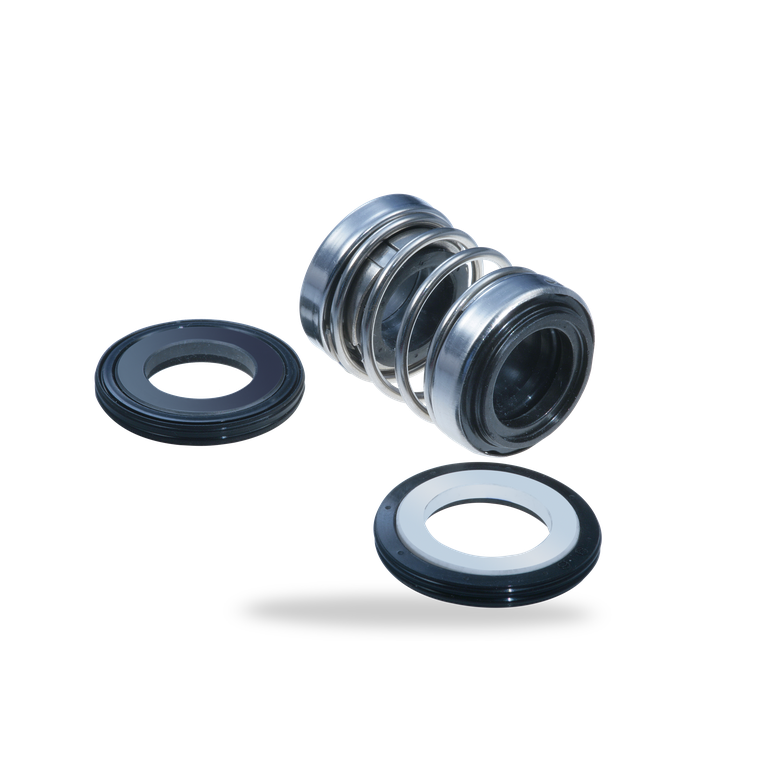

ED560
Features
- Dual seal
- Good chemical resistance and ability to handle solids
- In-house manufactured sliding parts
Advantages
Operating range
d1 = 13 ... 50 mm (0.51" ... 1.96")
Pressure:
p1 = d ≤19 mm: 2 bar (29 PSI),
d ≥ 20 mm: 3 bar (44 PSI),
vacuum ... 0.1 bar (1.45 PSI)
Temperature:
t = -20 °C ... +70 °C (-4 °F ... 158 °F)
Sliding velocity: vg = 5 m/s (16 ft/s)
Axial movement: ±1.0 mm
Materials
Seat: Aluminium oxide (V), Silicon carbide (Q1, Q2)
Elastomer: NBR (P)
Metal parts: CrNi steel (F)
Recommended applications
- Water and waste water technology
- Chemical industry
- Process industry
- Water and waste water
- Glycols
- Oils
- Industrial pumps/equipment
- Submersible pumps
- Engine pumps
- Circulating pumps
